Phonak Roger DigiMaster 5000V2 loudspeaker inc. wall mount.
Please note - this is the 5000V2 loudspeaker only, no
transmitter is included with this item. I
deal for schools who already use Phonak Roger
transmitters.

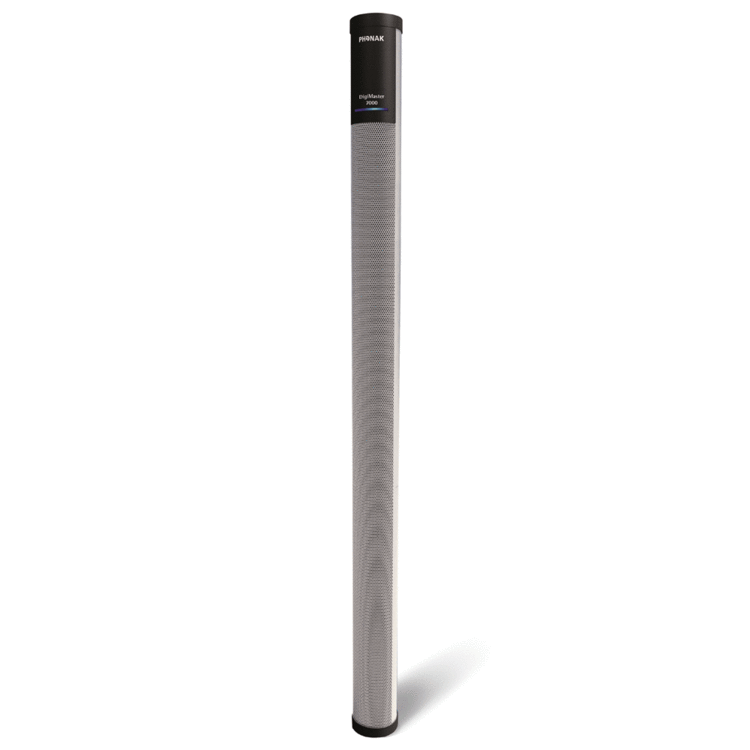

Phonak’s innovative Digimaster loudspeaker array is called the
DigiMaster 5000 V2. This features no less than 12 individual
high-quality loudspeakers, all housed in a robust aluminium frame.
The ratio between the teacher’s speech signal and any
undesired background noise (the Signal to Noise Ratio, or SNR) is
much more favourable using this kind of loudspeaker design. This is
especially true when children are sat further away from the
teacher, where they need high sound quality the most.
The DigiMaster 5000V2 array emits cylindrical sound waves at
the most important speech frequencies, ensuring that the required
sounds are carried effectively across a large area, while
generating very little speech-hindering ‘late reverberation’ or
echo. The DigiMaster 5000 V2 is supplied with a wall mount with the
option to purchase a floor or table stand.
System Features:
- Exclusive built-in Roger radio aid compatibility for children
using hearing instruments
- Bluetooth audio input for use with laptops etc.
- 3.5mm external audio input
- 3.5mm system audio output for recording, speech to text or
rebroadcasting
- Virtually installation-free - Designed for use in classrooms
up to 100m
2
- Unique ‘line-source’ loudspeaker unit for crystal clear
sound

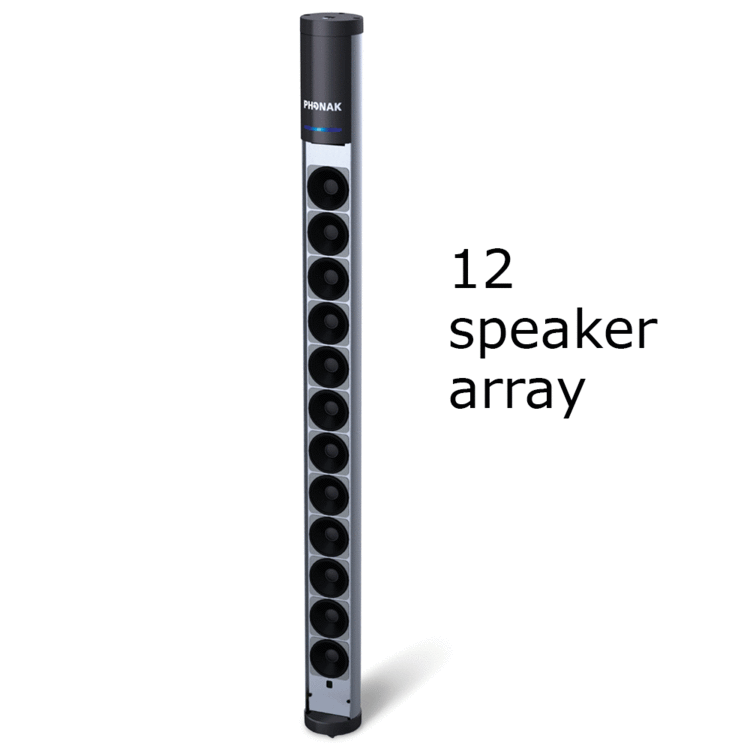

- 12 high-quality loudspeakers per loudspeaker unit
-
Dynamic Speech Extractor -
intelligent voice activation detection which mutes the receiver
when the teacher stops speaking
-
Monitoring & Data-logging
functions
- Multicolour LED status indicator provides immediate feedback
to the teacher
- Only one loudspeaker per classroom with unlimited number of
Roger SoundField systems per school
- Automatic frequency hopping for interference-free sound
- Automated Dynamic behaviour for optimal signal-to-noise
ratios (SNRs)
- Wall-mountable
- Floor and table stand options available
- USB C for updating with new features

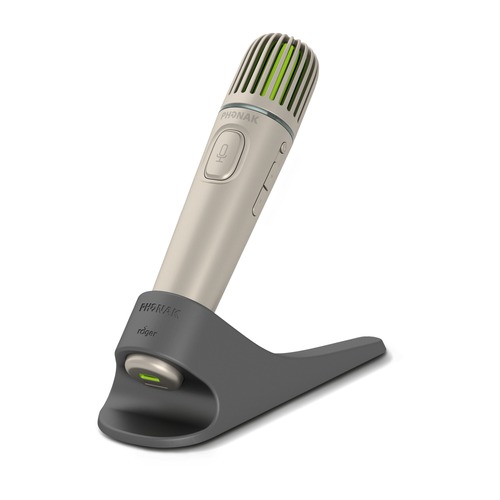

- MultiTalker Network with Roger Touchscreen Mic and Roger
PassAround Mic
Includes:
Speaker unit: 1 x DigiMaster 5000V2 loudspeaker unit, 1 x
wall mount & fixings, 1 x power adaptor & 1 x UK power
cable & user instructions.
Phonak part No. 056-4007
Please note: as per Phonak's standard terms of sale, the
Digimaster 5000V2 is a non-creditable item. It is supplied with a 2
year manufacturer's warranty, however it must be returned for
repair in it's original packaging - so please don't throw it
away! (spare packaging is available for purchase -
please contact Customer Services)
Digimaster 5000 V2 Technical data
The Roger DigiMaster 5000V2 SoundField receiver Operates with
Roger microphones
Dimension (LxW): 885 x 72 mm/35 x 2.8"
Weight: 2070 g/4.5 lbs
Operating conditions: 0° to +40° C/+32° to +104° F. Relative
humidity of <90% (non-condensing)

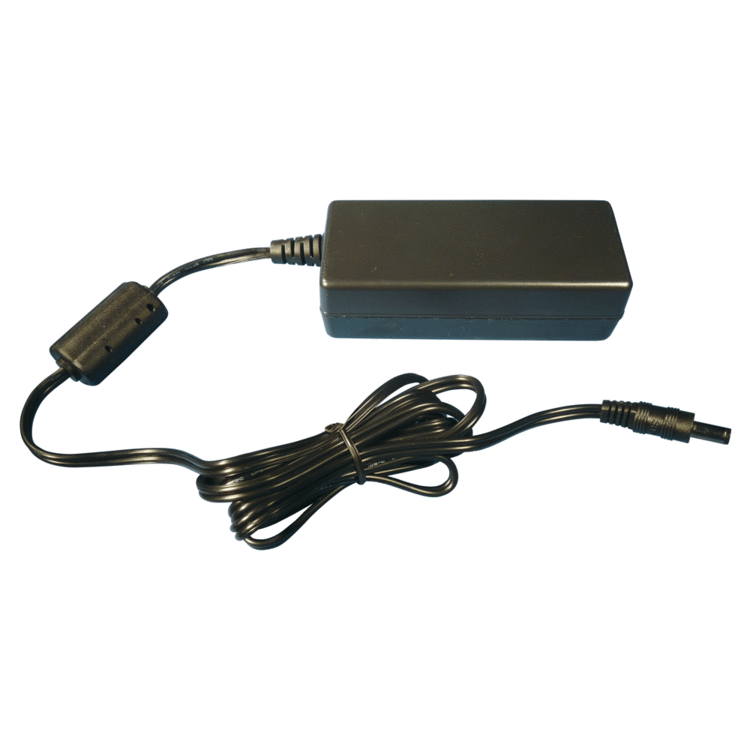

Power supply Voltage input: 100 - 240 V
Voltage output: 19 V DC/3.42 A/65 W
Power consumption in standby mode: <1 W
Power consumption in off mode: < 0.5 W
Transport and storage conditions: -20° to +60° Celsius (-4° to
+140° Fahrenheit). Relative humidity of 90% for a long period of
time.
DigiMaster 5000 V2 characteristics
Room size: up 100 m2 /1076ft2
Number of DigiMaster 5000 per system: 1
Number of DigiMaster 5000 per building: unlimited
DigiMaster 5000 compatible Roger microphones: All Roger for
Education microphones ie Touchscreen, PassAround Microphone,
MultiMedia Hub & Roger Repeater
Roger characteristics
Transmission technology: 2.4 GHz including adaptive automatic
frequency hopping
Power emission: 100 mW
Operating range: 25 m/82 ft
Audio characteristics
Audio bandwidth for speech: 200 Hz - 7.5 kHz
Volume control for voice: ± 8 dB
Power output: Up to 80 W
Loudspeaker array: 12 mini-loudspeakers
Vertical aperture angle of the main lobe @500Hz: ± 25°
Vertical aperture angle of the main lobe @2kHz: ± 25°
Auxiliary input: 3.5 mm jack
Audio bandwidth for auxiliary audio input: 100 Hz - 20 kHz
Volume control for auxiliary audio input: ± 10 dB
Auxiliary output: 3.5 mm jack line output
Audio bandwidth for Bluetooth: 100 Hz - 20 kHz
Bluetooth information
Standard: Bluetooth v4.2
Start of dynamic adaptation Level: > 58 dB SPL
Maximum peak output level over auxiliary audio input: 100dB SPL
@ 1m
Standards
EMC EN 301.489-1, -3, -9, -17
Power consumption complies with Ecodesign Directive
2005/32/EC
Europe, Canada, Japan, USA EC no 1275/2008, EN 62301,EN
300 328, EN 301 489, EN 62368-1, IEC/EN 62311, RSS-247, RSS-102,
ARIB-T66, CFR 47, part 15.247
Optional Accessories Available

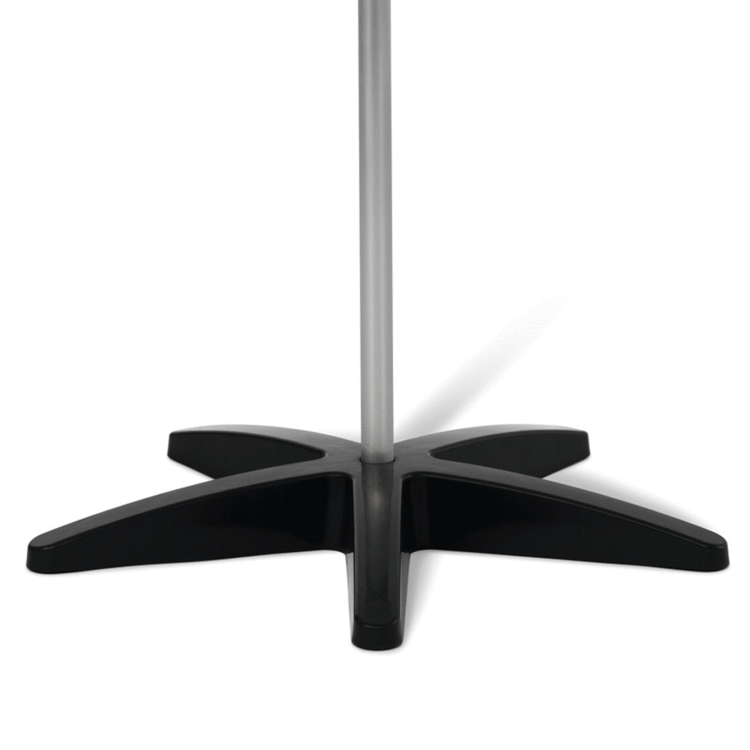

Floor Stand: Tube height: 1035 mm/41", foot print diameter: 750
mm/29", weight: 2.2 kg/4.8 lbs, height on floor stand: 1720
mm/68"
Wall Mount Kit: 1x connecting part to DigiMaster loudspeaker, 1x
wall support, screws

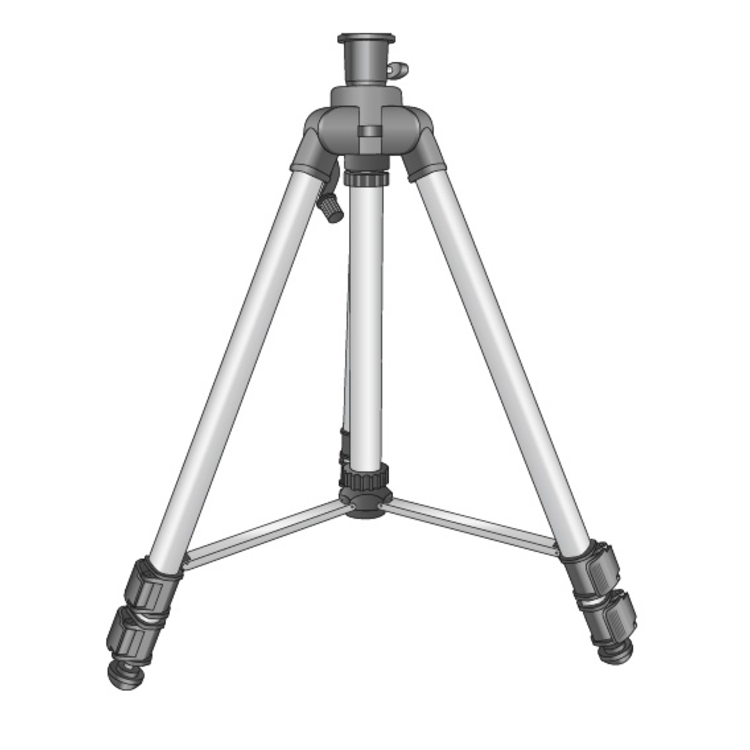

Tripod: To be used only in the lowest position in kindergarten.
Tube height: 280 mm/11", weight: 2 kg/4.4 lbs , height on tripod
stand: 1510 mm/59"
Desk Stand: Tube height: 280 mm/11", weight: 0.6 kg/1.3 lbs,
height on desk stand: 1150 mm/45"
DigiMaster 5000 datasheet
Follow this link for the Roger
Touchscreen Mic datasheet
Dynamic SoundField DigiMaster
5000/7000 Installation Guide
Phonak Roger in Education
International warranty for Phonak equipment purchased for
use outside of the UK.
Phonak offers a one-year limited
international warranty, valid as of the date of purchase. This
limited warranty covers manufacturing and material defects. The
warranty only comes into force if proof of purchase is
shown.
For customers using Phonak equipment
outside the UK, in the unlikely event that your equipment requires
repair it may be returned directly to your
local Phonak service
centre.
