PA bass speaker and subwoofer, 20cm, 300W MAX, 8 Ohm

Code: MZMSP8150PRO

Write a review

£62.77 (£52.31 ex VAT)

Quantity Pricing

2 - 4

£62.32 each (£51.93 each ex VAT)

5 +

£61.85 each (£51.54 each ex VAT)

Choose quantity

Order now for dispatch on Thu 8th May.

Description

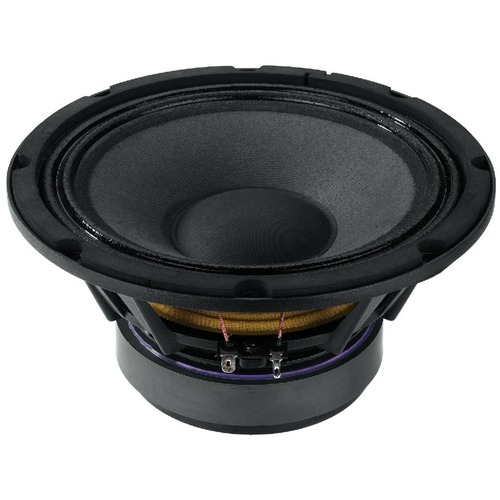

Compact professional PA bass speaker, subwoofer, 300WMAX, 150WRMS 8 Ω, 20cm (8")

This PA bass speaker is of long excursion and high power capability, with diecast aluminium basket, rear-ventilated centering spider and ventilated drive system for a high thermal stability. It features ideal parameters for a very good bass reproduction in compact bass-reflex cabinets.

This exceptional speaker from the L-RAY bass module combines a high power capability, a good efficiency and an amazing mechanical stability in a format which at 20cm is of extra compact size. This makes it a real bass speaker for the limit frequencies which normally require 30cm (12") PA speakers.

20 cm (8") bass speaker and subwoofer of high power capability
Heat-resistant voice coil and ventilated drive system
Drive configuration of very long excursion for a deep bass reproduction of high volumes
Progressive cone suspension for a high operating reliability
Robust diecast aluminium basket
Ideally suited for 2-way systems and compact subwoofers

IMG STAGE LINE product code: SP-8/150PRO

Details

TECHNICAL DATA:

Impedance (Z)	8Ω
Resonant frequency (fs)	56Hz
Max. frequency range	f3-3,000Hz
Music power	300W_MAX
Power rating (P)	150W_RMS
SPL (1W/m)	93dB
Suspension compl. (Cms)	0.35mm/N
Moving mass (Mms)	22.8g
Mech. Q factor (Qms)	1.52
Electr. Q factor (Qes)	0.41
Total Q factor (Qts)	0.32
Equivalent volume (Vas)	22 l
DC resistance (Re)	7.2Ω
Force factor (BxL)	11.96
Voice coil induct. (Le)	2.0mH
Voice coil diameter	dia 50mm
Voice coil former	aluminium
Linear excursion (X_MAX)	±6mm
Eff. cone area (Sd)	213cm²
Magnet weight	850g
Weight	1.9kg
