RG59B/U 75 Ohms Foamed PE Shortgun Cable with CCA Braid - 100m Black

Code: MX808105

Write a review

£76.19 (£63.49 ex VAT)

Quantity Pricing

2 - 3

£75.62 each (£63.02 each ex VAT)

4 +

£67.01 each (£55.84 each ex VAT)

Choose quantity

Order now for next working day dispatch.

Description

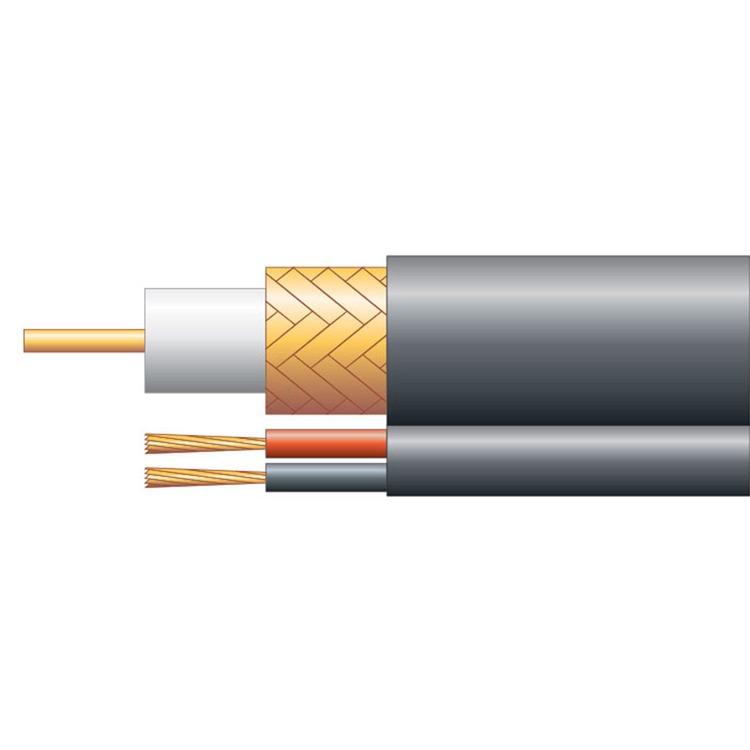

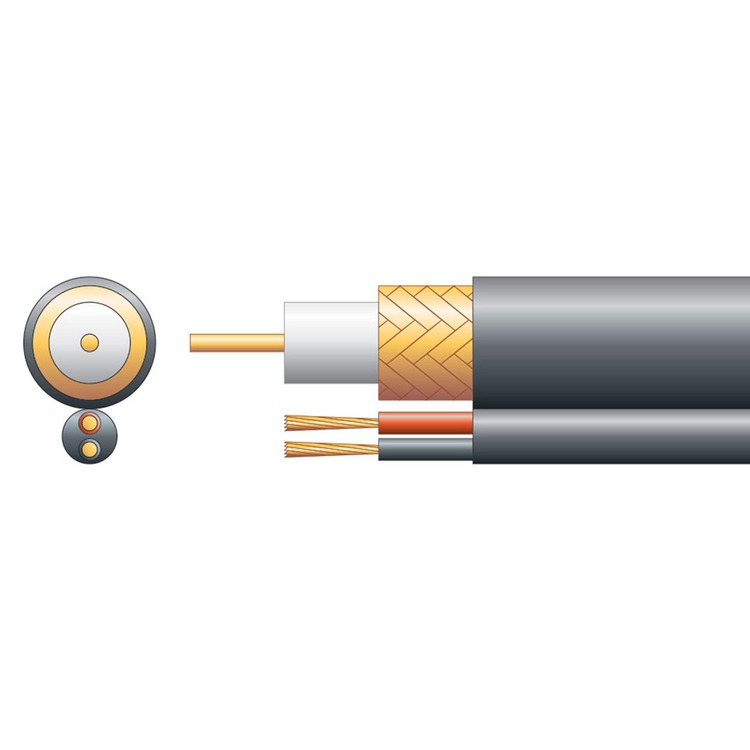

75 Ohms black RG59 coaxial cable coupled with a two core power cable. Constructed of a solid oxygen free copper conductor, foam filled polyethylene dielectric and copper clad aluminium braid. Paired with a two core strand conductor double insulated power cable. Designed for CCTV power and signal transmission.

Cable colour black
Solid OFC coaxial conductor
Foam filled PE dielectric
CCA braid
Stranded OFC power cable conductor
Supplied in 100m reel with metric cut markers

mercury product code: 808.105UK

Details

CSA 0.5mm²

Conductor diameter 0.8mmØ

Conductor material Solid OFC

Braid 48 x 0.12mmØ

Braid material CCA

Dielectric 3.7mmØ foam PE

Cable diameter 6mmØ

Impedance 75 Ohms

Capacitance 67pF/m

Velocity factor 83%

Power cable 2 x 7/0.38mmØ (0.79mm²) bare copper, red/black

Max. current 6A

Return loss 5-400MHz 24dB min./100m

Return loss 450-1000MHz 20dB min./100m

Return loss 1000-2150MHz 16dB min./100m

Attenuation @ 5MHz 2.8dB max./100m

Attenuation @ 50MHz 5.1dB max./100m

Attenuation @ 100MHz 7.3dB max./100m

Attenuation @ 200MHz 10.1dB max./100m

Attenuation @ 400MHz 14.9dB max./100m

Attenuation @ 860MHz 22.1dB max./100m

Attenuation @ 1000MHz 24.7dB max./100m

Attenuation @ 1750MHz 34.1dB max./100m

Attenuation @ 2150MHz 38.1dB max./100m

Colour Black

Length 100m

Weight 6.4kg
