Hi-Fi bass speaker and subwoofer, 2 x 100WMAX, 2 x 60WRMS, 2 x 8?

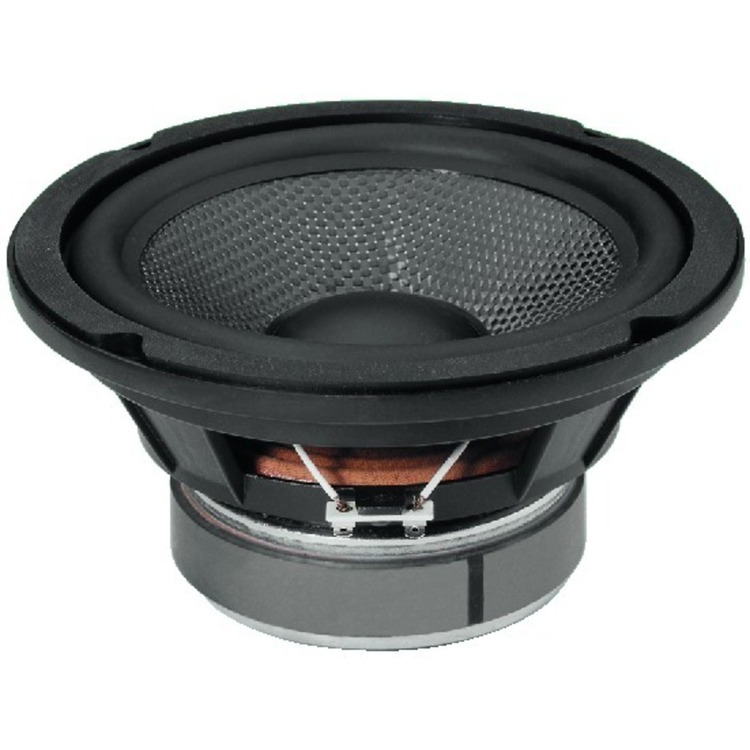

A dual voice coil bass speaker with diecast basket and carbon fibre cone, of very high power capability in very small cabinets, an ideal bass speaker for subwoofer applications of high requirements, if little space is available only.
NUMBER ONE product code: SPH-200CTC
TECHNICAL DATA:
Impedance (Z) | 2 x 8? |
Resonant frequency (fs) | 22Hz |

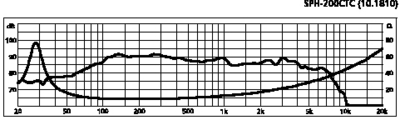

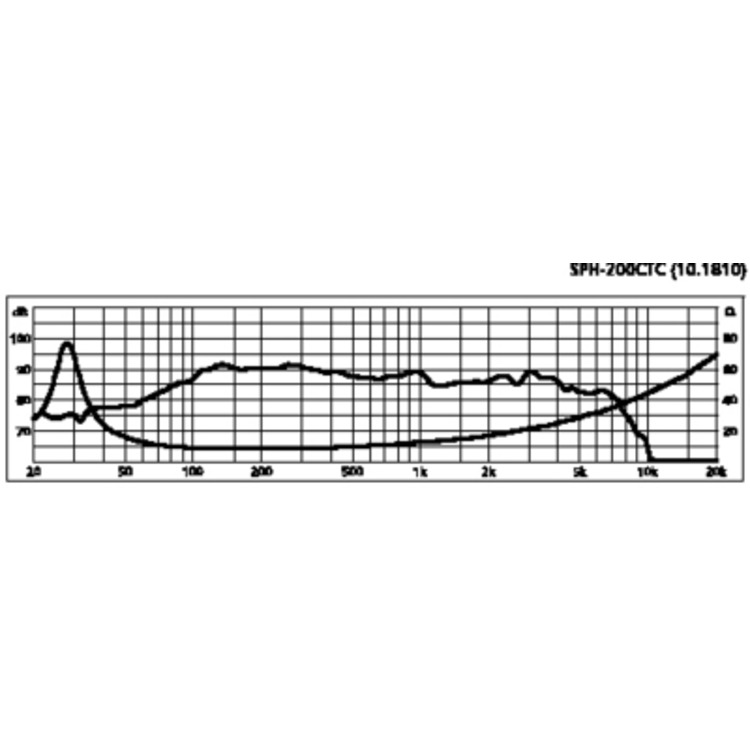

Max. frequency range | f3-4,000Hz |
Rec. crossover freq. (fmax.) | 3,500Hz |
Music power | 2 x 100W MAX |
Power rating (P) | 2 x 60W RMS |
SPL (1W/1m) | 88dB |
Suspension compl. (Cms) | 1.16mm/N |
Moving mass (Mms) | 45g |
Mech. resistance (Rms) | 1.1kg/s |
Mech. Q factor (Qms) | 4.91 |
Electr. Q factor (Qes) | 0.23 |
Total Q factor (Qts) | 0.22 |
Equivalent volume (Vas) | 75 l |
DC resistance (Re) | 2 x 6.8?/ 3.4? |
Voice coil induct. (Le) | 2 x 1.0mH/ 1.0mH |
Voice coil diameter | 50mm |
Voice coil former | Kapton |
Voice coil winding height | 15.5mm |
Air gap height | 8mm |
Linear excursion (X MAX) | ±3.75mm |
Eff. cone area (Sd) | 214cm 2 |
Volume displacement (Vd) | 80.3cm 3 |
Force factor (BxL) | 9Tm |
Reference efficiency (No) | 0.5% |

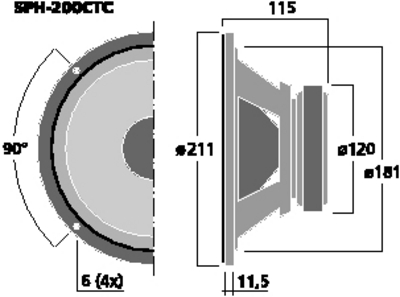

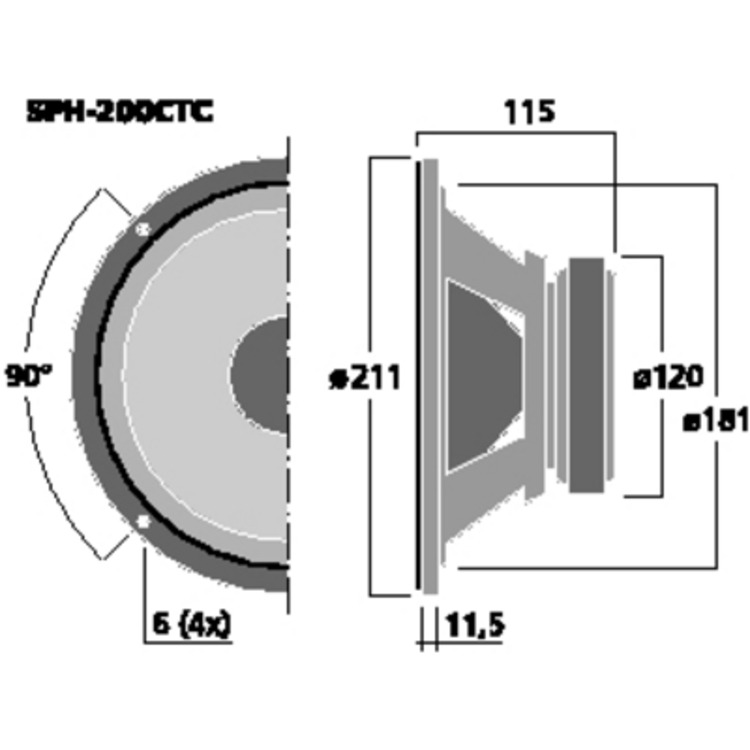

Magnet diameter | 120mm |
Magnet weight | 840g |
Mounting cutout (diameter) | 181mm |
Mounting depth | 115mm |
Dimensions (diameter) | 211mm |
Weight | 2.8kg |
Rec. net cabinet volume | |
Closed |
- |
Bass-reflex |
20 l |
