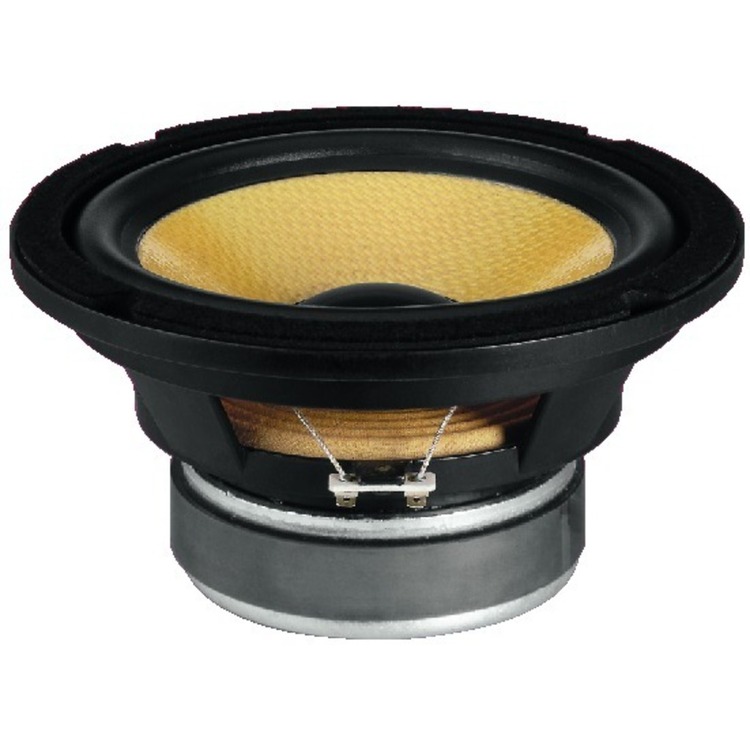

High quality Hi-Fi bass speaker, 120WMAX, 80WRMS, 8Ω
Highest power capability in subwoofer applications, also outstanding in midrange applications due to the Kevlar cones used. A highlight, both from the optical and technical point of view.
NUMBER ONE product code: SPH-200KE
TECHNICAL DATA:
Impedance (Z) | 8Ω |
Resonant frequency (fs) | 28Hz |
Max. frequency range | f3-4,500Hz |
Music power | 120WMAX |
Power rating (P) | 80WRMS |
SPL (1W/m) | 90dB |
Suspension compl. (Cms) | 0.89mm/N |
Moving mass (Mms) | 37g |
Mech. Q factor (Qms) | 4.65 |
Electr. Q factor (Qes) | 0.41 |
Total Q factor (Qts) | 0.38 |
Equivalent volume (Vas) | 54 l |
DC resistance (Re) | 6.2Ω |
Force factor (BxL) | 9.9Tm |
Voice coil induct. (Le) | 0.75mH |
Voice coil diameter | 50mm |
Voice coil former | Kapton |
Linear excursion (XMAX) | ±4.75mm |
Eff. cone area (Sd) | 207cm2 |
Magnet weight | 840g + 50g |
Weight | 2.8kg |
